ZEMIC-L6D-3kg

http://www.zemic.com.vn Aluminium-alloy IP65 single point load cell. Colourless anodized. Suitable for pricing scales, counting scales, bench scales, etc. Maximum platform size: 250 x 350 mm. OIML: test certificate no. TC7868 Revision 1 C of C no R60/2000-NL1-10.35. NTEP: Certificate no. 11-012. l6d*. Choose a selection... L6D-C3-2.5kg-0.4B

MODEL

L6D

Maximum Capacity

3kg

Accuracy class

OIML R60 C3

Output sensitivity

2.0 ± 0.2 mv/V

Input resistance

(409 ± 6) Ω

Output resistance

(350 ± 3) Ω

Size loadcell

(130 x 30 x 22) mm

Production by

ZEMIC EURO

Distributor by

www.zemic.com.vn

Certificate

OIML , CE



Price: 650,000 VNĐ
Details

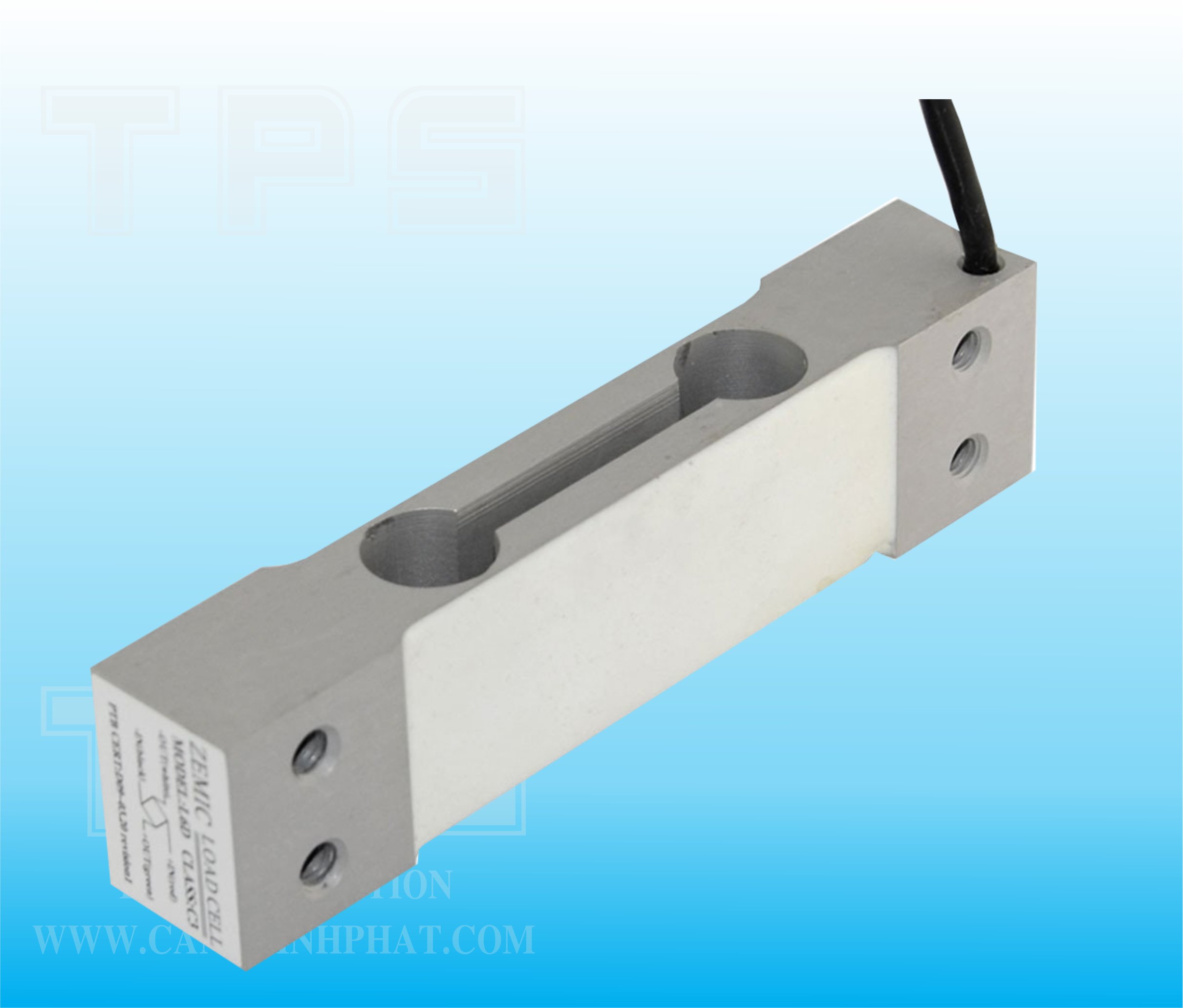

LOADCELL ZEMIC L6D
1.
L6D load cells are available in the capacities 2.5kg to 50kg.

2. Aluminum construction with parallel beam.
3. Silicon adhesive sealed, surface anodized and anti-corrosion.
4. Intergral structure and easy installation.
5. Suitable for pricing scale, platform scale and other electronic weighing devices.
6. Max. platform size: 250x350mm.
Specifications:

Capacity   2.5/3/5/6/8/10/15/20/30/35/4/50
Accuracy  kg  C3D C3 C3G
Approvals     OIML R60 C3
Maximum numberof
verification intervals
n max  2500  3000  4000
Minimum load cell
verification interval
v min  Emax/5000  Emax/7000  Emax/11000
Combined error (%FS ≤±0.030 ≤±0.020 ≤±0.015
Creep  (%FS/30min ≤±0.020 ≤±0.0167 ≤±0.0125
Temperature effect
on sensitivity
(%FS/10℃ ≤±0.021 ≤±0.0175 ≤±0.0131
Temperature effect on zero  (%FS/10℃ ≤±0.028 ≤±0.020 ≤±0.0127
Output sensitivity  (mv/v)  2.0±0.2
Input resistance  (Ω)  409±6/1065±15
Output resistance  (Ω)  350±3/1000±10
Insulation resistance  (MΩ)  ≥5000(50VDC
Zero balance  (%FS
Temperature,compensated (℃)  -10~+40
Temperature,operating (℃)  -35~+65
Excitation,Recommended (V)  5~12(DC)
Excitation,Max (V)  18(DC)
Safe overload  (%FS 150
Ultimate overload  (%FS 300
Corner correction   0.02% load value/100mm
